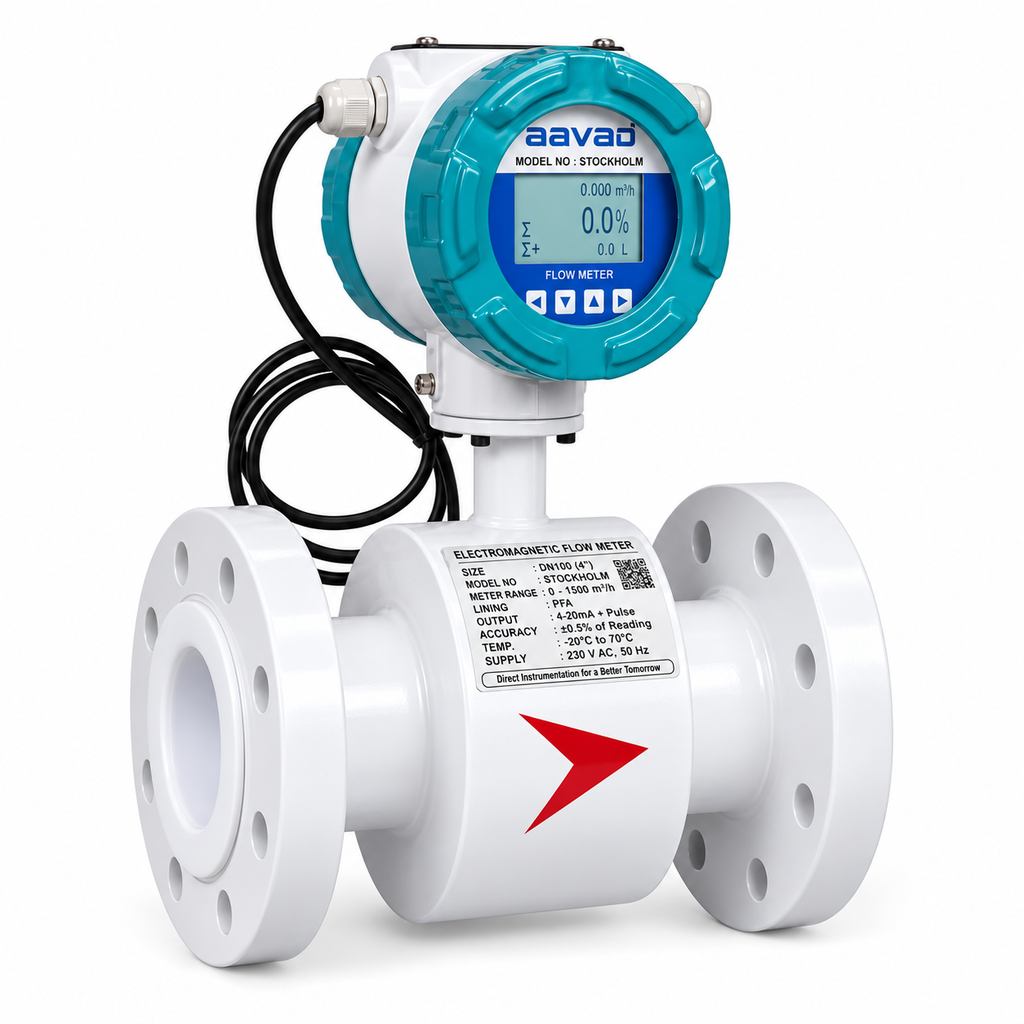

Teflon Lining Electromagnetic Flow Meter, MS Body ( INTIGRAL-SERIES )

Product Name: Teflon Lining Electromagnetic Flow Meter, MS Body ( INTIGRAL-SERIES )
Model: AMAG-I
Application: Water
Conductivity: ≥ 10 µs/Cm
Output: 4 ‐ 20mA Isolated, RS – 485, Pulse
Display: LCD 16×4 Line 9 Digit Totalized Flow
Flow Accuracy: + / ‐ 0.5 % Of Reading
Repeatability: + /‐ 1%
Operating Temperature: 0°C ‐ 150°C
Process Pressure: Max: 10 Kg/Cm2
Power Supply: 80AC - 230V AC
Response Time: 0.3 Sec
Process Connection: ASA 150 Flanged MS
Electronics Housing: Die Cast Aluminium, IP65
Empty Pipe Detection: Yes
Back Light Lcd: Yes
Velocity: 0.3 To 10 M/S
Measuring Unit: Selectable Kg/H,M3/H,L/H,L/M,L/S, Kg/M, Kg/S
Lining: PTFE Lining (Polytetrafluoroethylene)
Process Temperature: ≤150 °C
Electrode MOC: SS316L
Flow Tube Material: SS 304
Flow Tube Housing Body: MS
Line Size: 25 mm line size
Flow Measuring Range: 0.52 to 17.66 m3/hr
Accuracy Range : 1.77 to 10.6 m3/hr
